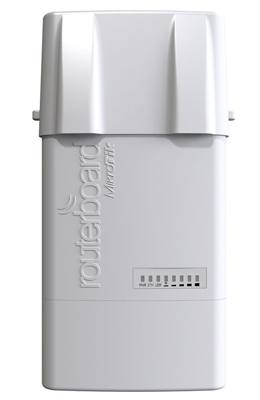

MikroTik BaseBox
Outdoor Wireless Device

MikroTik BaseBox

MikroTik Products
MikroTik Wireless Systems
MikroTik BaseBox2
2.4Ghz integrated AP/Backbone/CPE, 2xRPSMA connectors, 1000mW TX power, miniPCI-e slot, Gigabit Ethernet
#RB912UAG-2HPnD-OUT
Contact us for Pricing!
MikroTik BaseBox5
5Ghz integrated AP/Backbone/CPE, 2xRPSMA connectors, 1000mW TX power, miniPCI-e slot, Gigabit Ethernet
#RB912UAG-5HPnD-OUT
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

The BaseBox in an outdoor wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem.

The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.

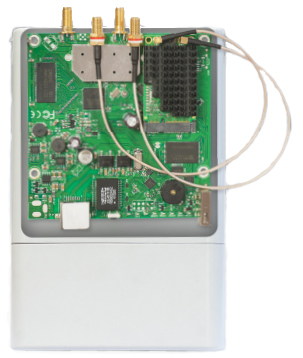

Rendered image shows internals of BaseBox with optional second wireless card
Rendered image shows internals of BaseBox with optional second wireless card

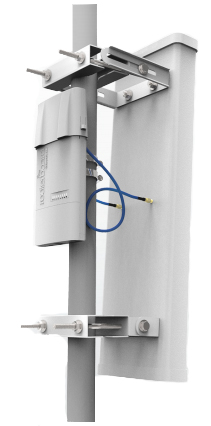

Using the optionally available Flexguide cable, you can use the Basebox with any 3rd party antenna
Using the optionally available Flexguide cable, you can use the Basebox with any 3rd party antenna

Specifications:

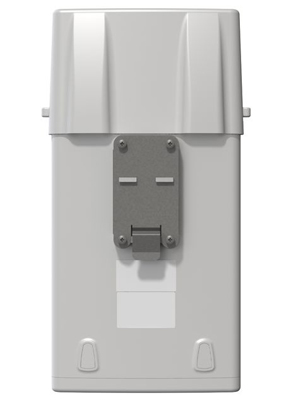

Rear View
Rear View

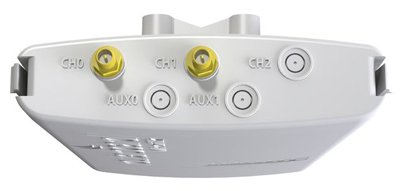

Top View
Top View
Model BaseBox 2 BaseBox 5
Features 1 Ethernet, 1 miniPCIe, USB, Additional memory, Gigabit, High power, Dual chain, Outdoor case
CPU Atheros AR9342 600MHz network processor
Memory 64MB DDR onboard memory
Ethernet One Gigabit port with Auto-MDI/X
Wireless Built in 2GHz 802.11b/g/n,
2x RP-SMA connectors
Built in 5GHz 802.11a/n,
2x RP-SMA connectors
Connector type RP-SMA Female (outside thread)
Extras beeper, signal and status LEDs, SIM slot (requires 3g miniPCIe card), voltage and temperature sensors
Expansion miniPCIe slot for 802.11 or 3G (using 3G disables the USB port), USB 2.0 port
Power options PoE: 8-30V DC on Ether1 (Non 802.3af). Consumption: 14W at 24V
Dimensions 246 x 135 x 50mm
Weight 390g
Operating System MikroTik RouterOS, Level4 license (supports wireless AP mode)
Box contains
  • RB912 outdoor unit
  • PSU
  • PoE injector
  • Mounting loop
  • DIN rail mount
  • Monting ring
Wireless Specifications BaseBox 2 BaseBox 5
TX/RX at MCS0 30dBm / -96dBm 30dBm / -96dBm
TX/RX at MCS7 24dBm / -78dBm 24dBm / -78dBm
TX/RX at 6Mbit 30dBm / -96dBm 30dBm / -96dBm
TX/RX at 54Mbit 27dBm / -80dBm 27dBm / -80dBm
Frequency range 4900-5920MHz 2400MHz-2500MHz
Included parts
Gigabit PoE injector
Gigabit PoE injector
DIN mount (K-27)
DIN mount (K-27)
Plastic zip tie
Plastic zip tie
Metal ring (one)
Metal ring (one)

Documentation:

Download the MikroTik BaseBox Series Data Sheet (PDF).
