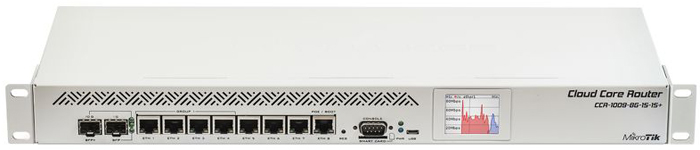

MikroTik Cloud Core Router CCR1009-8G-1S-1S+
Powerful Ethernet router based on the cutting edge TILERA 9 core CPU with 8-port Gigabit Ethernet, one SFP port and one SFP+ port with 10G support

MikroTik Cloud Core Router CCR1009-8G-1S-1S+

MikroTik Products
MikroTik Ethernet Routers
MikroTik Cloud Core Router CCR1009-8G-1S-1S+
1U rackmount, 8x Gigabit Ethernet, 1x SFP cage, 1x SFP+ cage, 9 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, SmartCard slot, RouterOS L6
#CCR1009-8G-1S-1S+
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

  • 1U rackmount
  • 8x Gigabit Ethernet
  • 1x SFP cage
  • 1x SFP+ cage
  • 9 cores x 1.2GHz CPU
  • 2GB RAM
  • LCD panel
  • Dual Power supplies
  • SmartCard slot
  • RouterOS L6

The CCR1009 is a powerful Ethernet router based on the cutting edge TILERA 9 core CPU.

CCR1009-8G-1S-1S+ comes with 2GB of RAM, eight Gigabit Ethernet ports (Ether1-4 are in a Switch group), one SFP port and one SFP+ port with 10G support (SFP module not included).

CCR1009-8G-1S-1S+ model have dual power supplies built in for redundancy (if one power line fails, the other one will take over automatically).

Also, CCR1009-8G-1S-1S+ supports a Smart card, to store your private key for use in all features that support Certificate based authentication.

Block Diagram:

CCR1009 Block Diagram

Specifications:

Feature / Model CCR1009-8G-1S CCR1009-8G-1S-1S+
CPU Tilera TILE-Gx8009 CPU (9-cores, 1.2Ghz per core)
Memory 1GB DDR3 800 MHz RAM 2GB DDR3 800 MHz RAM
Ethernet Eight 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X
SFP 1x SFP cage 1x SFP cage, 1x SFP+ cage
Expansion microUSB port microUSB port, SmartCard slot, MicroSD slot
Storage 128MB Onboard NAND
Serial port One DB9 RS232C asynchronous serial port
Extras Reset switch; beeper; voltage, current and temperature monitoring; speed controlled fan Reset switch; beeper; voltage, current and temperature monitoring; speed controlled fan, LCD
Power options 1x IEC C14 power jack AC 110/220V, PoE in 12-58V, 802.3af/at compliant 2x IEC C14 power jacks AC 110/220V, PoE in 12-58V, 802.3af/at compliant
Max power consumption 34W (with loaded SFP) 35W (with loaded SFP)
Unit dimensions 444 x 175 x 47mm
Temperature -20C - +60C
Power consumption 34W (with loaded SFP) 35W
Operating System MikroTik RouterOS v6 (64bit), Level 6 license
Package includes
  • router in a 1U case
  • IEC power cable
  • USB cable
  • rackmount ears
  • router in a 1U case with LCD
  • 2x IEC power cables
  • USB cable
  • rackmount ears
Included parts
IEC cord
IEC cord
Rack ears
Rack ears
USB OTG cable
USB OTG cable

Performance Test Results:

Performance Test Results
CCR1009-8G-1S-1S+ RouterOS v6.2
Model Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging fast path 11,249.0 7,379.3 2,200.0 9,328.0 974.0 11,968.5
Bridging 25 bridge filter rules 1,509.0 989.9 1,434.0 6,080.2 974.0 11,968.5
Routing fast path 9,931.0 6,514.7 1,982.0 8,403.7 974.0 11,968.5
Routing 25 Simple Queues 1,942.0 1,274.0 1,789.0 7,585.4 974.0 11,968.5
Routing 25 Firewall filter rules 765.0 501.8 711.0 3,014.6 614.0 7,544.8

Documentation:

Download the MikroTik CCR1009 Series Data Sheet (PDF).
