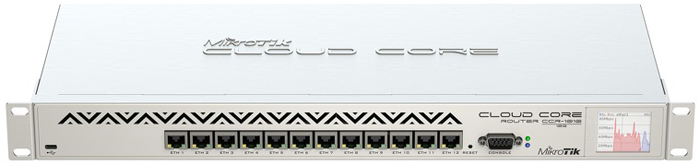

MikroTik Cloud Core Router CCR1016-12G
Industrial grade super fast router with cutting edge 16 core CPU and 12-port Gigabit Ethernet

MikroTik Cloud Core Router CCR1016-12G

MikroTik Products
MikroTik Ethernet Routers
MikroTik Cloud Core Router CCR1016-12G
1U rackmount, 12x Gigabit Ethernet, LCD 16 cores x 1.2GHz CPU, 2GB RAM, 17.8mpps fastpath, Up to 12Gbit/s throughput, RouterOS L6
#CCR1016-12G
Our Price: $649.00

Click here to jump to more pricing!

Overview:

  • 1U rackmount
  • 16 core networking CPU, 1.2GHz clock per core
  • 12 Mbytes total on-chip cache
  • State of the art TILE GX architecture
  • Ports directly connected to CPU
  • 1U rackmount case option
  • 12x Gigabit ports
  • Color touchscreen LCD display
  • Up to 1.5 mpps throughput in regular mode
  • Up to 17.8 mpps throughput in fastpath mode (wire speed)
  • Up to 12 Gbps throughput with RouterOS queue/firewall configuration
  • 3-10x faster than RB1100AHx2

CCR1016 is an industrial grade super fast router with cutting edge 16 core CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.

The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

The device is available with a 1U rackmount case, has twelve Gigabit ethernet ports, a serial console cable and a USB port. The CCR1016-12G has two SODIMM slots, by default it is shipped with 2GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more). It comes with power supply and 1U rackmount case.

Specifications:

CCR1016-12G Specifications
CPU Tilera Tile-Gx16 CPU (16-cores, 1.2Ghz per core)
Memory Two SODIMM DDR slots, 2x 1GB installed (no hw or software max limit)
Ethernet Twelve 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X
Expansion microUSB port, host and device mode
Storage 512MB Onboard NAND
Serial port One DB9 RS232C asynchronous serial port
Extras Reset switch; beeper; voltage, current and temperature monitoring; speed controlled fan
Power options IEC C14 standard connector 110/220V, PSU
Board dimensions 355 x 145 x 55mm
Temperature Max ambient temperature 50° @ 1.2GHz; 70° @ 1GHz CPU core frequency
Operating System MikroTik RouterOS v6 (64bit), Level 6 license
Power consumption 38W
Box contains
  • Router in a 1U case with LCD
  • PSU
  • Power cable
  • USB cable
Included parts
IEC cord
IEC cord
USB OTG cable
USB OTG cable

Performance Test Results:

Performance Test Results
CCR1016-12G All port test RouterOS
Model Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 17,841.0 11,703.7 2,817.0 11,944.1 974.0 11,968.5
Bridging 25 bridge filter rules 2,033.0 1,333.6 1,960.0 8,310.4 974.0 11,968.5
Routing none (fast path) 14,212.0 9,323.1 2,817.0 11,944.1 974.0 11,968.5
Routing 25 simple queues 2,745.0 1,800.7 2,600.0 11,024.0 974.0 11,968.5
Routing 25 ip filter rules 965.0 633.0 855.0 3,625.2 768.0 9,437.2

Documentation:

Download the MikroTik CCR1016-12G Data Sheet (PDF).
