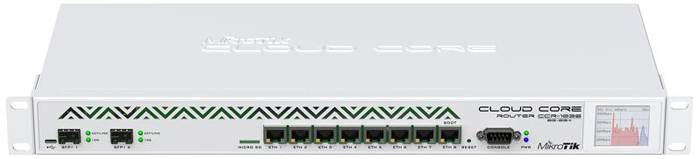

MikroTik Cloud Core Router CCR1036-8G-2S+
Carrier grade router with a cutting edge 36 core Tilera CPU, eight Gigabit Ethernet ports and two SFP+ ports

MikroTik Cloud Core Router CCR1036-8G-2S+

MikroTik Products
MikroTik Ethernet Routers
MikroTik Cloud Core Router CCR1036-8G-2S+
1U rackmount, 8x Gigabit Ethernet, 2x SFP+ cages, LCD 36 cores x 1.2GHz CPU, 4GB RAM, 41.5mpps fastpath, Up to 28Gbit/s throughput, RouterOS L6
#CCR1036-8G-2S+
Our Price: $1,099.00

Click here to jump to more pricing!

Overview:

  • 1U rackmount case
  • 8x Gigabit ports
  • 2x SFP+ ports
  • Color touchscreen LCD
  • Ports directly connected to CPU
  • 36 core CPU
  • 1.2GHz clock per core
  • 12 Mbytes total on-chip cache
  • State of the art TILE GX architecture
  • 8 mpps standard forwarding
  • 41.5 mpps fastpath forwarding (wire speed for all ports)
  • Up to 28Gbit/s throughput

Our fastest router has now become even better - the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model, and delivers the same performance, but now, ten gigabit links are possible.

The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports, a serial console cable and a USB port.

The CCR1036-8G-2S+ has two SODIMM slots, by default it is shipped with 4GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more). Also available now, the EM model with 16GB of RAM!

Block Diagram:

CCR1036-8G-2S+ Block Diagram

Specifications:

Feature / Model CCR1036-8G-2S+ CCR1036-8G-2S+EM
CPU Tilera Tile-Gx36 CPU (36-cores, 1.2Ghz per core)
Memory Two SODIMM DDR3 slots, 4GB (2x2GB) RAM installed (no hardware or software max limit) Two SODIMM DDR3 slots, 16GB (2x8GB) RAM installed
Ethernet Eight 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X
SFP Two 10G Ethernet SFP+ cages (Mini-GBIC; SFP module not included), DDMI support
Expansion microUSB port, host and device mode
Storage 1GB Onboard NAND
Serial port One DB9 RS232C asynchronous serial port
Extras Reset switch; speed controlled fan; beeper; voltage, current and temperature monitoring
Power options IEC C14 standard connector 110/220V (PSU included), up to 60W power consumption
Board dimensions 355 x 145 x 55mm
Temperature Max ambient temperature 50° @ 1.2GHz; 70° @ 1GHz CPU core frequency
Operating System MikroTik RouterOS v6 (64bit), Level 6 license
Box contains
  • Router in a 1U case with LCD
  • PSU
  • Power cable
  • USB cable
Included parts
IEC cord
IEC cord
USB OTG cable
USB OTG cable

Performance Test Results:

Performance Test Results
CCR1036-8G-2S+ (1200Mhz) All port test RouterOS
Model Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 41,636.0 27,313.2 6,574.0 27,873.8 2,274.0 27,942.9
Bridging 25 bridge filter rules 5,817.0 3,816.0 5,630.0 23,871.2 2,274.0 27,942.9
Routing none (fast path) 41,636.0 27,313.2 6,574.0 27,873.8 2,274.0 27,942.9
Routing 25 simple queues 7,782.0 5,105.0 6,574.0 27,873.8 2,274.0 27,942.9
Routing 25 ip filter rules 3,081.0 2,021.1 2,796.0 11,855.0 2,274.0 27,942.9

Documentation:

Download the MikroTik CCR1036-8G-2S+ Data Sheet (PDF).
