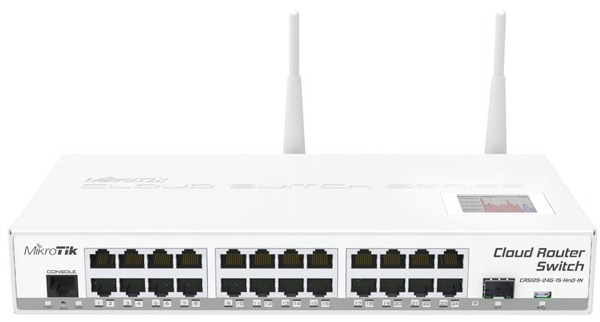

MikroTik CRS125-24G-1S-2HnD-IN
Twenty-four Gigabit Ethernet ports cloud router switch - 2.4GHz wireless access point

MikroTik CRS125-24G-1S-2HnD-IN

MikroTik Products
MikroTik Switches
MikroTik Cloud Router Switch CRS125-24G-1S - 2.4GHz Wireless Access Point
#CRS125-24G-1S-2HnD-IN
Our Price: $209.00

Click here to jump to more pricing!

Overview:

  • 24x Gigabit Ethernet layer 3 Smart Switch
  • 1x SFP cage
  • Color touchscreen LCD
  • 1000mW 802.11b/g/n Dual Chain wireless
  • 600MHz CPU
  • 128MB RAM
  • Metal desktop case
  • RouterOS L5

Cloud Router Switch is our new Smart Switch series. It is a fully functional Layer 3 switch, and is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.

Choose ports for Wire speed switching, or for routing purposes.

What's more - this device has a built in 2.4GHz wireless access point, this means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device - ideal for medium/small businesses and offices. It has 24 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP.

Perfect SOHO gateway router, switch, 11n AP all in one box:

  • Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
  • RouterOS gateway/firewall/VPN router with passive cooling
  • Up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)
  • 1000mW high power 2.4GHz 11n wireless AP

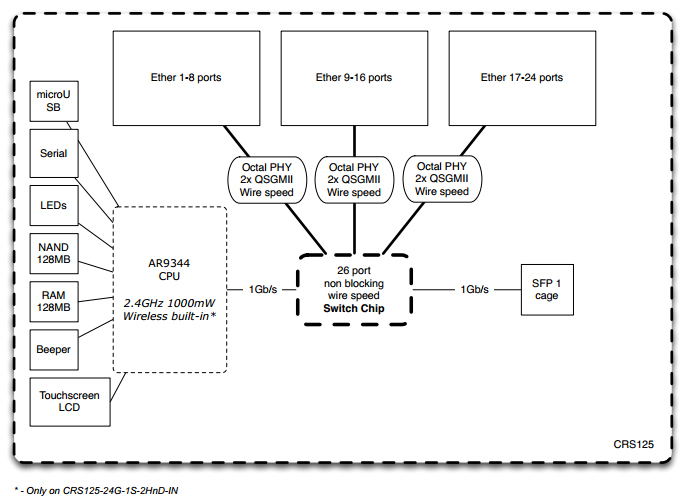

Block Diagram:

CRS125 Block Diagram

Specifications:

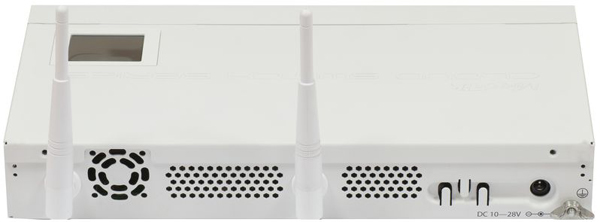

CRS125-24G-1S-2HnD-IN Rear View

CRS125-24G-1S-2HnD-IN Specifications
CPU Qualcomm Atheros AR9344 600 MHz
Memory 128MB
Ethernet 24x 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X
SFP One fixed Gigabit Ethernet SFP cage
Expansion microUSB port
Storage 128MB Onboard NAND with multiple OS partition support
Serial port One RJ45 serial port
Extras Reset switch; beeper; voltage and temperature monitoring, touchscreen LCD
Power options 8-28V, 24V 1.2A PSU included
Dimensions 285 x 145 x 45mm
Operating temperature -35C to +65C tested
Operating System MikroTik RouterOS v6, Level 5 license
Included
  • Cloud Router Switch
  • Power adapter
  • USB OTG cable (for 4G dongle or USB drive)
Wireless Specifications
Antennas 2x built in 4dBi swivel antennas
RX sensitivity 802.11g: -96dBm @ 6Mbit/s to -80dBm @ 54Mbit/s
802.11n: -96dBm @ MCS0 to -78dBm @ MCS7
TX power 802.11g: 30dBm @ 6Mbps to 25dBm @ 54 Mbps
802.11n: 30dBm @ MCS0 to 23dBm @ MCS7
Modulations OFDM: BPSK, QPSK, 16 QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK

Documentation:

Download the MikroTik CRS125-24G-1S-2HnD-IN Data Sheet (PDF).
