MikroTik CRS226-24G-2S+RM
Twenty-four Gigabit Ethernet ports cloud router switch with two SFP+ ports - 1U rackmount enclosure

MikroTik CRS226-24G-2S+RM

MikroTik Products
MikroTik Switches

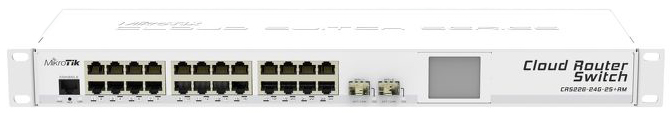

MikroTik Cloud Router Switch CRS226-24G-2S+ - 1U Rackmount Enclosure
#CRS226-24G-2S+RM
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

  • 24x Gigabit Ethernet layer 3 Smart Switch
  • 2x SFP+ cages
  • Color touchscreen LCD
  • 400MHz CPU
  • 64MB RAM
  • 1U rackmount case
  • RouterOS L5

The Cloud Router Switch CRS226-24G-2S+ is now available also in a 1U rackmount case, product code CRS226-24G-2S+RM. It is a fully functional Layer 3 switch powered by RouterOS. All the specific switch configuration options are available in a special switch menu. But if you want, ports can be removed from the switch configuration and used for routing purposes. It has 24 Gigabit ports and two SFP+ cages for 10G connectivity (first SFP port supports 1.25G/10G modules, second port only 10G modules).

The CRS226 uses a new class of switch chips, which allows us to have two SFP+ ports for 10G connectivity.

  • Fully manageable L3 switch, full wire speed switching
  • Configure ports as switch, or for routing
  • If required, full RouterOS power right there
  • SFP+ ports for 10G connectivity

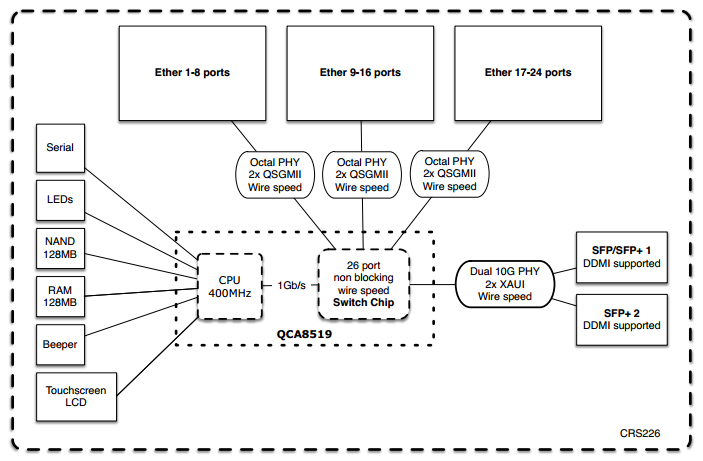

Block Diagram:

CRS226 Block Diagram

Specifications:

CRS226-24G-2S+RM Specifications
CPU Qualcomm Atheros QCA8519 400 MHz
Memory 64MB
Ethernet 24x 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X
SFP Two 10G Ethernet SFP+ cages (Mini-GBIC; SFP module not included), DDMI support.
First port supports 1.25G/10G modules, second port only 10G modules.
Expansion None
Storage 128MB Onboard NAND with multiple OS partition support
Serial port One RJ45 serial port
Extras Reset switch; beeper; voltage and temperature monitoring, touchscreen LCD
Power options 8-28V, 24V 1.2A PSU included, PoE in: 8-30V on Ether1
Dimensions 443 x 145 x 45mm
Operating temperature -35C to +65C tested
Operating System MikroTik RouterOS v6, Level 5 license
Included
  • Cloud Router Switch
  • Power adapter

Documentation:

Download the MikroTik CRS226-24G-2S+ Series Data Sheet (PDF).
