MikroTik Metal
Rugged outdoor device

MikroTik Metal

MikroTik Products
MikroTik Wireless Systems

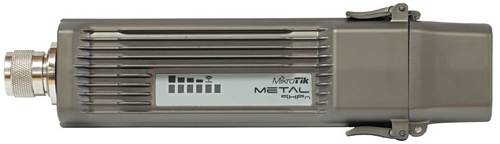

MikroTik Metal 9HPn
900MHz Integrated AP/Backbone/CPE, 1000 mW TX power, N-male connector
#RBMetal9HPn
Contact us for Pricing!
MikroTik Metal 2SHPn
2.4Ghz Integrated AP/Backbone/CPE, 1600 mW TX power, N-male connector, 6dBi Omni antenna
#RBMetal2SHPn
Our Price: $99.00
MikroTik Metal 5SHPn
5Ghz Integrated AP/Backbone/CPE, 1300 mW TX power, N-male connector
#RBMetal5SHPn
Our Price: $99.00

Click here to jump to more pricing!

Overview:

Completely waterproof, rugged, and super high powered. The serious outdoor wireless device. Fully sealed, industrial design metal case, powered by RouterBOARD and RouterOS.

Fully sealed, industrial design metal case, powered by RouterBOARD and RouterOS. 11.5 WATT of output power - to reach the last mile, in any conditions. It comes with L4 license, so you can attach your favorite antennna to use it as an AP, to make wireless point-to-point links or as a CPE- whatever you prefer!

It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

Shipped complete with power injector, adapter (US type only for 9HPn model) and mounting kit. Available in three versions - 900MHz, 2GHz and 5GHz.

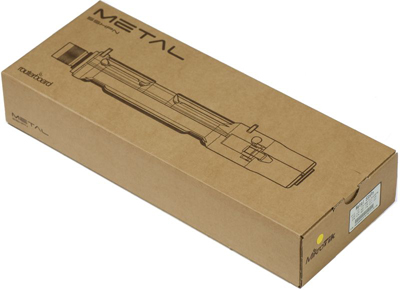

MikroTik Metal Box

Specifications:

Models 9HPn 2SHPn 5SHPn
CPU Atheros AR7241 400MHz network processor
Memory 64MB DDR SDRAM onboard memory
Ethernet One 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X, L2MTU up to 2030
Wireless cards Wireless Built-in 5 GHz, 2 GHz or 900MHz 1x1 MIMO, N-male connector
Extras Reset switch, Beeper, Voltage monitor, Temperature monitor
LEDs 5 wireless signal LEDs, ethernet activity LED (configurable)
Power options Passive 8-30V PoE only. 16KV ESD protection on RF port
Dimensions 177 x 44 x 44mm. Must be mounted with ethernet pointing down
Weight 193g
Power consumption Up to ~0,5A at 24V (11.5W)
Operating temperature -30C to +70C
Operating System MikroTik RouterOS Level4 license (station, point-to-point or AP modes)
Box contains
  • Metal SHPn unit
  • Mounting loops
  • PoE injector
  • Angled N connector
  • 6dBi onmi antenna (only for 2SHPn model)
  • Mounting rings
  • 24V power adapter
Wireless Specifications 9HPn 2SHPn 5SHPn
RX sensitivity 900MHz: -93dBm @ 11Mbps -75 dBm @ 54 Mbps 802.11b/g: -93 dBm @ 6Mbps to -77 dBm @ 54 Mbps
802.11n: -92 dBm @ MCS0 to -72 dBm @ MCS7 40MHz
802.11a: -93 dBm @ 6Mbps to -77 dBm @ 54 Mbps
802.11n: -93 dBm @ MCS0 to -71 dBm @ MCS7
TX power 900Mhz: 27 dBm @ 11Mbps to 24dBm @ 54 Mbps 802.11b/g: 32dBm @ 1-11/6Mbps to 29dBm @ 54 Mbps
802.11n: 32dBm @ MCS0 to 28dBm @ MCS7
802.11a: 31dBm @ 6Mbps to 27dBm @ 54 Mbps
802.11n: 30dBm @ MCS0 to 26dBm @ MCS7
Modulations OFDM: BPSK, QPSK, 16 QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK
Included parts
24V 0.8A power adapter
24V 0.8A power adapter
Angled N connector
Angled N connector
Metal rings (two)
Metal rings (two)
6dBi omni antenna
6dBi omni antenna
(Metal 2SHPn Only)
PoE injector
PoE injector
Plastic zip tie
Plastic zip tie

Performance Test Results:

Performance Test Results
RBMetal2SHPn and RBMetal5SHPn (400Mhz) Gigabit port test RouterOS
Model Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 194.0 127.3 178.4 756.6 81.2 997.8
Bridging 25 bridge filter rules 53.7 35.2 52.3 221.9 51.5 633.0
Routing none (fast path) 183.7 120.5 167.0 708.1 81.2 997.8
Routing 25 simple queues 92.8 60.8 88.5 375.1 81.2 997.8
Routing 25 ip filter rules 37.5 24.6 38.4 162.6 37.6 462.4

Documentation:

Download the MikroTik Metal Series Data Sheet (PDF).
