MikroTik OmniTIK U-5HnD
The perfect outdoor access point with dual-polarized omni antennas

MikroTik OmniTIK U-5HnD

MikroTik Products
MikroTik Wireless Systems
MikroTik OmniTIK U-5HnD
7.5dBi Integrated AP, 5Ghz Dual chain, 5x Ethernet ports
#OMN5HND
Our Price: $89.00

Click here to jump to more pricing!

Overview:

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 802.11 standard device.

Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

LED signal indicators on it's back are fully customizable, show Ethernet activity or wireless signal - or any other information from RouterOS.

The USB port gives the ability to connect a 3G modem or a storage drive. The OmniTIK runs RouterOS with all it's features.

Specifications:

Rear Hold View
Rear Hold View

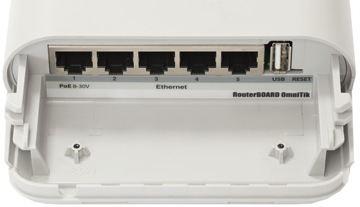

Bottom View

Bottom View
OmniTIK U-5HnD Specifications
CPU Atheros AR7241 400MHz network processor
Memory 32MB DDR SDRAM onboard memory
Boot loader RouterBOOT
Data storage 64MB onboard NAND memory chip
Ethernet Five 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X, L2MTU frame size up to 2030
Wireless cards Wireless Built-in 5GHz 802.11a/n 2x2 MIMO
Antenna Two 7.5dBi (+/-1dBi) omni with different polarities (ch0 horizontal, ch1 vertical polarization)
Extras Reset switch, USB 2.0 port
LEDs 5 programmable LEDs (Ethernetactivity by default), one power LED
Power options Passive 9-30V PoE only. 16KV ESD protection on RF port
Dimensions 368 x 125 x 55mm
Weight 520g
Operating temperature -30C to +70C
Operating System MikroTik RouterOS v5, Level4 license
Box contains
  • OmniTIK unit
  • Mounting bracket
  • Hose clamp
  • PoE injector
  • 24V power adapter
Wireless Specifications
Antenna Two 7.5dBi (+/-1dBi) omni with different polarities (ch0 horizontal, ch1 vertical polarization)
RX sensitivity 802.11a: -96 dBm @ 6Mbps to -80 dBm @ 54 Mbps
802.11n: -96 dBm @ MCS0 to -77 dBm @ MCS7
TX power 802.11a: 26dBm @ 6Mbps to 22dBm @ 54 Mbps
802.11n: 25dBm @ MCS0 to 19dBm @ MCS7
Modulations OFDM: BPSK, QPSK, 16 QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK
Included parts
Metal ring (one)
Metal ring (one)
PoE injector
PoE injector

Antenna Patterns:

Vertical and Horizontal Polarization Antenna Patterns

Horizontal Azimuth
Horizontal Azimuth
Horizontal Elevation
Horizontal Elevation
Vertical Azimuth
Vertical Azimuth
Vertical Elevation
Vertical Elevation

Documentation:

Download the MikroTik OmniTIK U-5HnD Data Sheet (PDF).
