MikroTik QRT 5
High power integrated antenna

MikroTik QRT 5

MikroTik Products
MikroTik Wireless Systems
MikroTik QRT 5
5GHz AP/Backbone/CPE, 1000mW dual-chain, Gigabit Ethernet
#RB911G-5HPnD-QRT
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

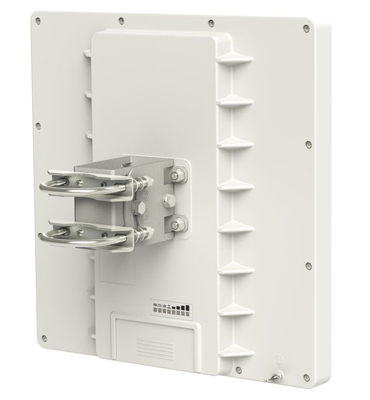

The QRT 5 is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 23dBi antenna and a high power 5GHz wireless transmitter.

Inside is the high power RB911 dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11n high speed wireless.

Easy to use and quick to deploy, QRT is ideal for point to point links.

Specifications:

QRT-5 Specifications
Features 1 Ethernet, Gigabit, High power, Dual chain
CPU Atheros AR9342 600MHz network processor
Memory 64MB DDR onboard memory
Data storage 128MB NAND memory chip
Ethernet One Gigabit port with Auto-MDI/X
Wireless Built in 5GHz 802.11a/n (AR9342)
Extras beeper, signal and status LEDs, voltage and temperature sensors
Expansion None
Power options PoE: 8-30V DC on Ether1 (Non 802.3af)
Dimensions 309 x 320 x 50mm
Power consumption 11W at 24V
Operating System MikroTik RouterOS, Level4 license (supports wireless CPE/PtP and AP mode)
Box contains
  • QRT wireless device
  • Precision mounting bracket
  • U bolts
  • Pole clamp
  • Screw kit
  • 24V 0.8A power adapter
  • Gigabit PoE injector
Wireless Specifications
TX/RX at MCS0 30dBm / -96dBm
TX/RX at MCS7 24dBm / -78dBm
TX/RX at 6Mbit 30dBm / -96dBm
TX/RX at 54Mbit 27dBm / -80dBm
Frequency range 4900-5920MHz
Included parts
QRT antenna mount
QRT antenna mount
PoE injector
PoE injector
U bolts
U bolts
U mast clamp
U mast clamp
K-QRT screw kit
K-QRT screw kit


Antenna Patterns:

QRT-5 Antenna Patterns
Frequencies 4.9 - 5.875 GHz
Gain 23 ± 1 dBi
VSWR 1.37 : 1
3 dB Beam-Width, H-Plane 10.5°
3 dB Beam-Width, E-Plane, typ. 10.5°
Polarization Dual, Vertical and horizontal
Port to Port Isolation -50 dB
Cross Polarization, min. -25 dB
Front to Back Ratio, min. 35 dB

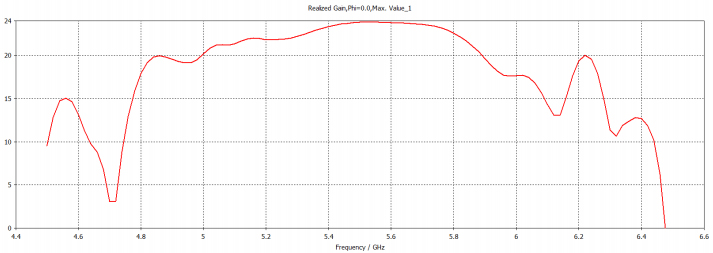

Horizontal Polarization Gain
Horizontal Polarization Gain

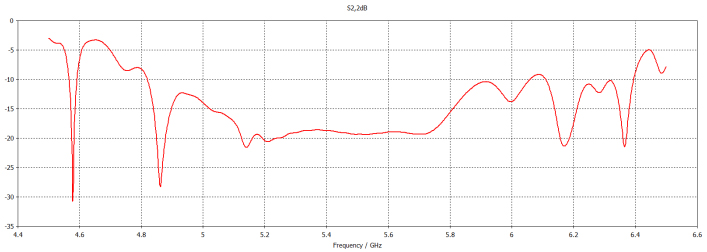

Horizontal Polarization Return Loss
Horizontal Polarization Return Loss

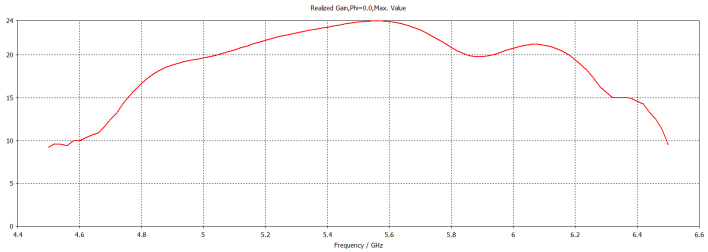

Vertical Polarization Gain
Vertical Polarization Gain

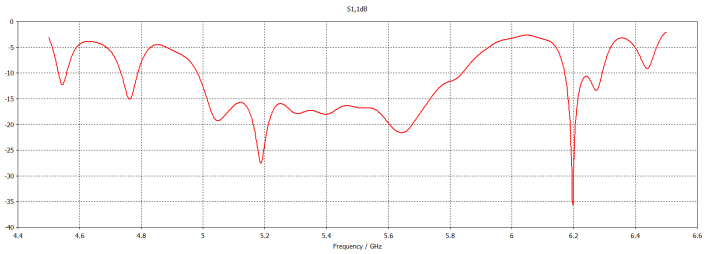

Vertical Polarization Return Loss
Vertical Polarization Return Loss

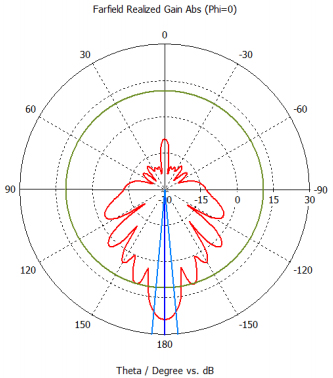

Horizontal Polarization PHI 0
Horizontal Polarization PHI 0

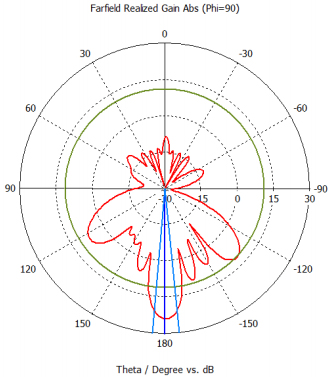

Horizontal Polarization PHI 90
Horizontal Polarization PHI 90

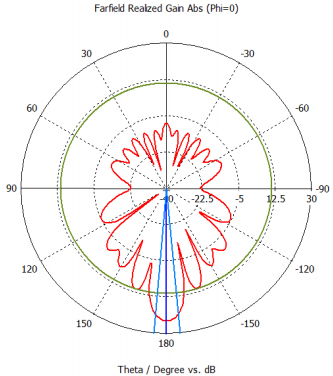

Vertical Polarization PHI 0
Vertical Polarization PHI 0

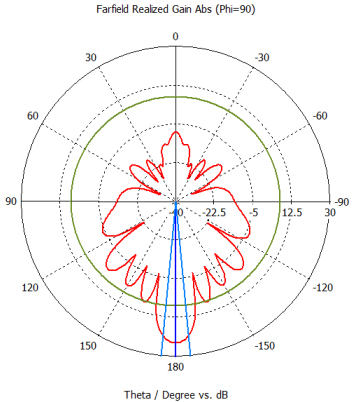

Vertical Polarization PHI 90
Vertical Polarization PHI 90

Documentation:

Download the MikroTik QRT 5 Data Sheet (PDF).
