MikroTik RouterBOARD 260GSP
Five Gigabit Ethernet ports small SOHO switch with one SFP cage and PoE output

MikroTik RouterBOARD 260GSP

MikroTik Products
MikroTik Switches
MikroTik RouterBOARD 260GSP SOHO Switch
#RB260GSP
Contact us for Pricing!

Click here to jump to more pricing!

RouterBOARDOverview:

  • Smart switch
  • Small and compact
  • Plastic case
  • 5x Gigabit Ethernet Smart Switch
  • SFP cage
  • Web interface controlled
  • Smarter than smart

The RB260GSP is a small SOHO switch, which features power output on it's ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products - SwOS.

It is powered by an operating system designed specifically for MikroTik Switch products - SwOS.

SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: Allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.

Included parts 24V 2.5A power adapter
Included parts 24V 2.5A power adapter

Specifications:

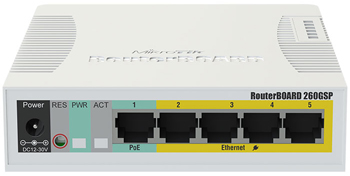

Front View
Front View

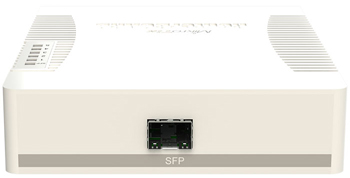

Rear View
Rear View
RB260GSP Specifications
CPU Taifatech TF470
Memory Embedded 96K SRAM
Ethernet Five 10/100/1000 Ethernet ports, Atheros switch AR8327
PoE output Passive PoE output on ports 2-5. Max current 1A per port
SFP One fixed Gigabit Ethernet SFP cage with DDMI support (Mini-GBIC; SFP module not included)
Serial port No serial port
LEDs Power, NAND activity, 5 Ethernet activity LEDs
Extras Hardware watchdog
Power options PoE: 8-30V DC on Ether1 (Non 802.3af). Jack: 8-30V DC
Dimensions 113 x 138 x 29mm
Weight 212g without packaging and PSU
Power consumption Up to 6W
Operating temperature -25C - +65C
Operating System MikroTik SwOS

Documentation:

Download the MikroTik RB260GS Series Data Sheet (PDF).
