MikroTik SXT 5HPnD
High transmit power 5GHz outdoor wireless device

MikroTik SXT 5HPnD

MikroTik Products
MikroTik Wireless Systems
MikroTik SXT 5HPnD
16dBi integrated CPE/Backbone, high power 1250mW TX power
#RBSXT-5HPnD
Our Price: $94.00

Click here to jump to more pricing!

Overview:

SXT 5HPnD is a low cost, high transmit power 5GHz outdoor wireless device. Up to 1250mW transmit power! SXT 5HPnD can be used for point to point links or as a CPE for point to multipoint installations.

Complete with a ready to mount enclosure and built-in 16dBi antenna, the package contains everything you need to make a point to point link, or connect to an AP.

SXT Lite5 Box

Specifications:

SXT 5HPnD Specifications
Features 5HPnD (5Ghz, Higher Power wireless, 802.11n, Dual-chain)
CPU Atheros AR7241 400MHz CPU
Memory 32MB DDR SDRAM onboard memory
Ethernet One 10/100 Ethernet port, L2MTU frame size up to 4076
Wireless cards Onboard dual chain 5GHz 802.11a/n Atheros AR9280 wireless module;
10kV ESD protection on each RF port
Extras Reset switch, beeper, USB 2.0 port, voltage and temperature monitors
LEDs Power LED, Ethernet LED, 5 wireless signal LED
Power options Power over Ethernet: 8-30V DC
Packaged with 24V DC 0.8A power adapter and passive PoE injector
Dimensions 140 x 140 x 56mm
Weight Without packaging, adapters and cables: 265g
Power consumption Up to 7W
Operating temperature -30C to +80C
Operating System MikroTik RouterOS, Level3 license
Certifications FCC, CE, ROHS
Box contains
  • SXT wireless device with integrated antenna
  • Pole mounting bracket
  • Mounting ring
  • PoE injector
  • Power adapter
  • Quick setup guide
Wireless Specifications
Antenna Dual polarization 5GHz antenna, 16 ±2 dBi, - 35 dB port to port isolation
RX sensitivity 802.11a: 31dBm @ 6Mbps to 28 dBm @ 54 Mbps
802.11n: 30dBm @ MCS0/8 (20/40MHz) to 26dBm @ MCS7/15 (20/40MHz)
TX power 802.11a: 6Mbit/s: -93dBm; 54Mbit/s: -77dBm
802.11n: 5GHz MCS0 20MHZ (6.5Mbit/s) -93dBm
802.11n: 5GHz MCS7 40MHZ (135Mbit/s) -71dB
Modulations OFDM: BPSK, QPSK, 16 QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK
Included parts
Metal ring (one)
Metal ring (one)
PoE injector
PoE injector

Performance Test Results:

Performance Test Results
RBSXT5HPnD (400Mhz) Gigabit port test RouterOS
Model Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 194.0 127.3 178.4 756.6 81.2 997.8
Bridging 25 bridge filter rules 53.7 35.2 52.3 221.9 51.5 633.0
Routing none (fast path) 183.7 120.5 167.0 708.1 81.2 997.8
Routing 25 simple queues 92.8 60.8 88.5 375.1 81.2 997.8
Routing 25 ip filter rules 37.5 24.6 38.4 162.6 37.6 462.4

Antenna Patterns:

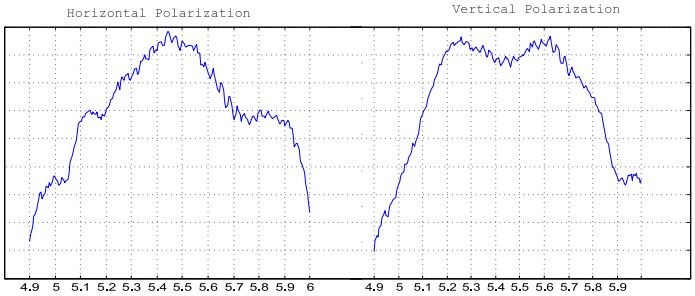

Horizontal and Vertical Polarization

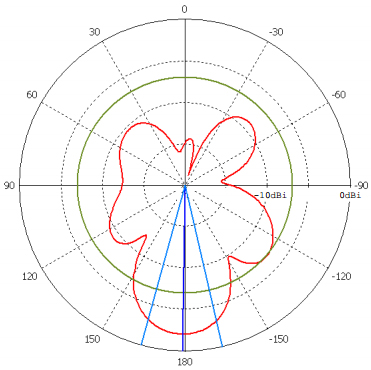

Vertical Polarization 0deg
Vertical Polarization 0deg

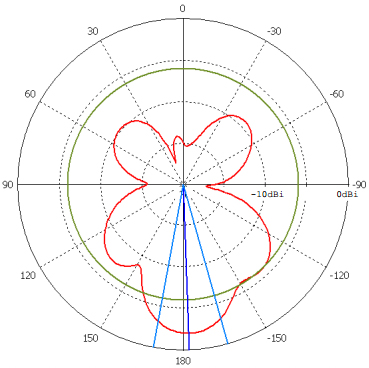

Vertical Polarization 90deg
Vertical Polarization 90deg

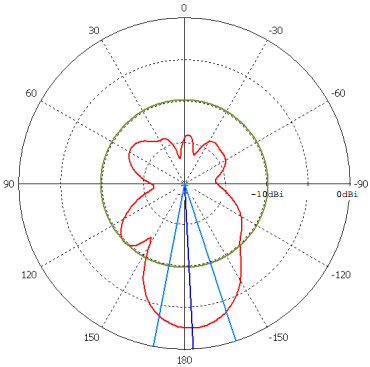

Horizontal Polarization 0deg
Horizontal Polarization 0deg

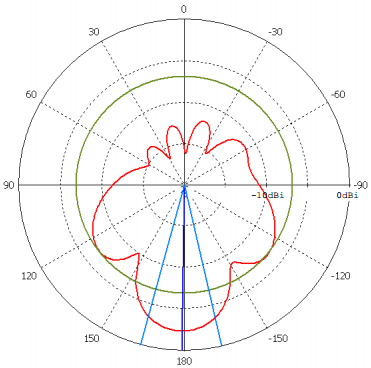

Horizontal Polarization 90deg
Horizontal Polarization 90deg

Documentation:

Download the MikroTik SXT 5HPnD Data Sheet (PDF).
