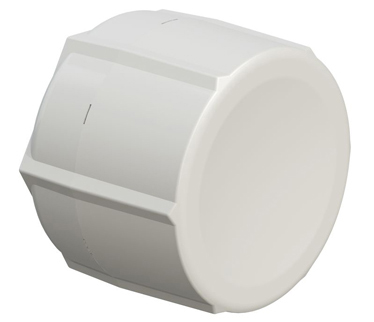

MikroTik SXT HG
High gain, high power wireless device

MikroTik SXT HG

MikroTik Products
MikroTik Wireless Systems
MikroTik SXT HG
17dbi integrated AP/Backbone/CPE, Gigabit Ethernet
#RBSXTG-5HPnD-HGr2
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

SXTG HG is a High Gain, High Power wireless device designed and manufactured by MikroTik. The wireless output power for this device is up to 30dBm (1000 mW!).

It is equipped with 5GHz 17dBi 24 degree antenna, Gigabit Ethernet port and RouterOS L4 license (can be used as AP, Backbone or CPE). It is powered by our new generation AR9344 CPU, which makes it even more powerful, to ensure you get the maximum throughtput.

Specifications:

SXT HG Specifications
CPU AR9344 600MHz CPU
Memory 64MB DDR2
Ethernet 1x 10/100/1000 Gigabit Ethernet
Wireless cards Onboard dual chain 5GHz 802.11a/n Atheros AR9344 wireless module;
10kV ESD protection on each RF port
Extras Reset switch, beeper, USB 2.0 port, voltage and temperature monitors
LEDs Power LED, Ethernet LED, 5 wireless signal LED
Power options Power over Ethernet: 8-30V DC
Packaged with 24V DC 0.8A power adapter and passive PoE injector
Dimensions 140 x 140 x 56mm
Weight Without packaging, adapters and cables: 265g
Power consumption 11W at 24V
Operating temperature -30C to +80C
Operating System MikroTik RouterOS, Level4 license (AP support)
Certifications FCC, CE, ROHS
Box contains
  • SXT wireless device with integrated antenna
  • Pole mounting bracket
  • Mounting ring
  • PoE injector
  • Power adapter
  • Quick setup guide
Wireless Specifications
Antenna Dual pol. 24deg, 5GHz antenna, 17dBi, -30 dB port to port isolation, 1.43 VSWR
TX/RX at MCS0 30dBm / -93dBm
TX/RX at MCS7 26dBm / -71dBm
TX/RX at 6Mbit 31dBm / -92dBm
TX/RX at 54Mbit 28dBm / -77dBm
Included parts
Metal ring (one)
Metal ring (one)
PoE injector
PoE injector

Documentation:

Download the MikroTik SXT HG Data Sheet (PDF).
