MikroTik SXT SA
High speed 5GHz outdoor wireless sector access point

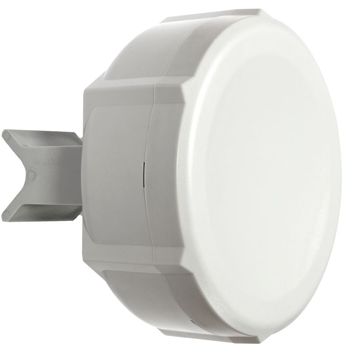

MikroTik SXT SA

MikroTik Products
MikroTik Wireless Systems
MikroTik SXT SA
14dBi integrated Sector AP, 90 degrees beamwidth, 1000mW TX power, Gigabit Ethernet
#RBSXTG-5HPnD-SAr2
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

SXTG-5HPnD-SAr2 is a low cost, high speed 5GHz outdoor wireless sector access point. It has a 90 degree antenna to provide a wider coverage than our previous SXT units.

Complete with a ready to mount enclosure and built-in 14dBi antenna, the package contains everything you need to set it up in a matter of minutes. The inside of the case is covered in special shielding to improve operation in high interference areas and antenna front to back ratio.

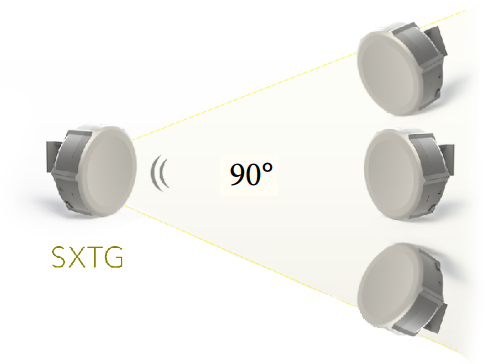

SXTG 90 Degree

Specifications:

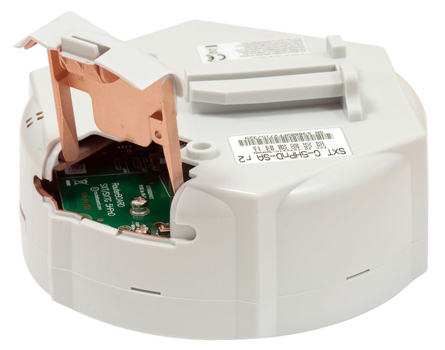

SXT SA Open View

SXT SA Specifications
CPU AR9344 600MHz CPU
Memory 64MB DDR SDRAM onboard memory
Ethernet 1x 10/100/1000 Gigabit Ethernet
Wireless cards Onboard dual chain 5GHz 802.11a/n .10kV ESD protection on RF port
Extras Reset switch, beeper, USB 2.0 port, voltage and temperature monitors
LEDs Power LED, Ethernet LED, 5 wireless signal LED
Power options Power over Ethernet: 8-30V DC. Packaged with 24V DC 0.8A PSU and passive PoE injector
Dimensions 140 x 140 x 56mm
Weight Without packaging, adapters and cables: 265g
Power consumption Up to 7W
Operating temperature -30C to +80C
Operating System MikroTik RouterOS, Level4 license (CPE, PtP or AP as sector)
Certifications FCC, CE, ROHS
Box contains
  • SXT wireless device with integrated antenna
  • Pole mounting bracket
  • Mounting ring
  • PoE injector
  • Power adapter
  • Quick setup guide
Wireless Specifications
Antenna 90 deg, -35dB port to port isolation, 14dBi gain
TX/RX at MCS0 30dBm / -95dBm
TX/RX at MCS7 26dBm / -73dBm
TX/RX at 6Mbit 30dBm / -96dBm
TX/RX at 54Mbit 27dBm / -80dBm
Included parts
Metal ring (one)
Metal ring (one)
PoE injector
PoE injector

Performance Test Results:

Performance Test Results
RBSXTG-5HPnD-SAr2 (600Mhz) Gigabit port test RouterOS
Model Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 269.6 176.9 232.0 983.7 81.0 995.3
Bridging 25 bridge filter rules 87.6 57.5 86.0 364.6 81.0 995.3
Routing none (fast path) 226.9 148.8 210.0 890.4 81.0 995.3
Routing 25 simple queues 106.6 69.9 103.9 440.5 81.0 995.3
Routing 25 ip filter rules 60.5 39.7 59.6 252.7 56.8 698.0

Antenna Patterns:

Horizontal and Vertical Polarization

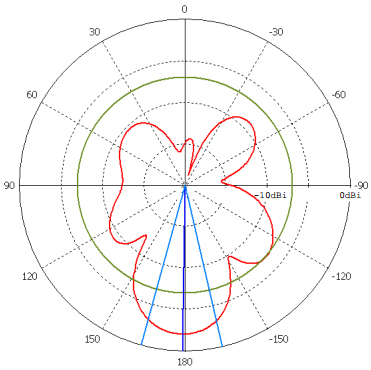

Vertical Polarization 0deg
Vertical Polarization 0deg

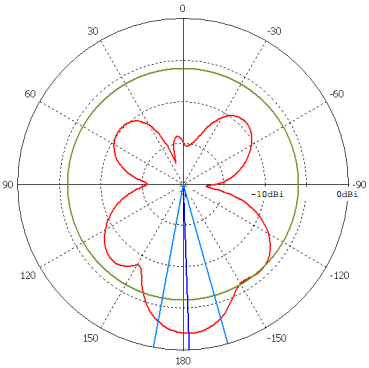

Vertical Polarization 90deg
Vertical Polarization 90deg

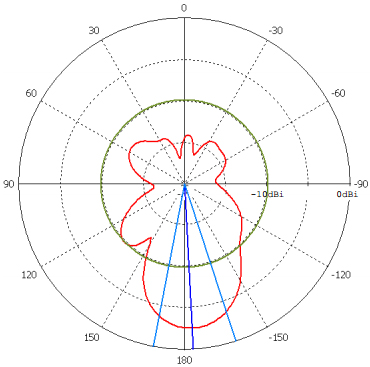

Horizontal Polarization 0deg
Horizontal Polarization 0deg

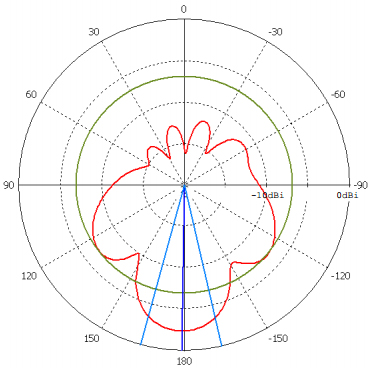

Horizontal Polarization 90deg
Horizontal Polarization 90deg

Documentation:

Download the MikroTik SXT SA Data Sheet (PDF).
