MikroTik mANT30 Series
Professional class 5 GHz 30dBi dish antenna

MikroTik mANT30 Series

MikroTik Products
MikroTik Antennas
MikroTik mANT30
Parabolic Dish Antenna for 5GHz, 30dBi gain
#MTAD-5G-30D3
Contact us for Pricing!
MikroTik mANT30 with Precision Alignment Mount
Parabolic Dish Antenna for 5GHz, 30dBi gain. This model includes precision alignment mount
#MTAD-5G-30D3-PA
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

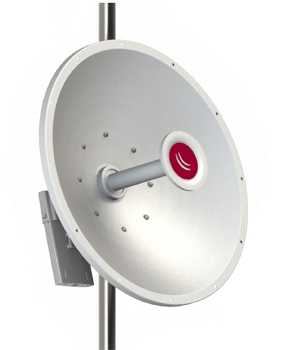

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.

Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

Note: Basebox wireless device pictured for illustrative purposes. It is not included

Specifications:

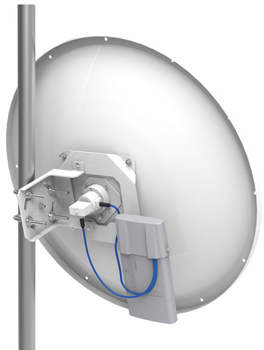

MTAD-5G-30D3 (With standard type mount)
MTAD-5G-30D3
(With standard type mount)

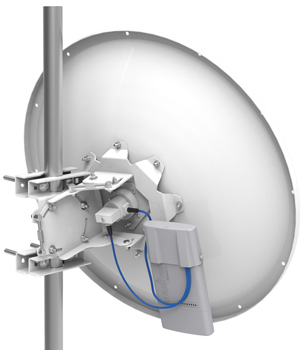

MTAD-5G-30D3-PA (With precision alignment mount)
MTAD-5G-30D3-PA
(With precision alignment mount)
mANT30 Specifications
Electrical Specifications
Frequency Range 4.7-5.875 GHz
Gain 30 dBi typically
Polarization Dual (Vertical and Horizontal)
3dB Beamwidth +/-2.5 deg
Standards Complies with EN 302 326 DN1, DN2, DN3, DN5
VSWR ≤ 1.4 typ, ≤ 1.8 max
Port to Port Isolation >40dB min
Front-to-Back Ratio >30 dB
Cross Polarization >40 dB
Power Rating 100 watts
Impedance 50 ohms
Elevation adjustment range +/- 20 deg (MTAD-5G-30D3),
+/- 15 deg (MTAD-5G-30D-PA)
Physical/Environmental Specifications
Diameter x Depth 70 x 45cm (27.5 x 17.8in)
Weight neto 5.7kg (12.6 lbs) PA and 4.8kg (10.7 lbs) standard version
Reflector Aluminum
Outdoor Rating ETSI EN 300 019-2-4
Wind Survivability 201kph (125mph)
Wind Load (125 mph) 181.4kg (400 lbs)
Operating Temperature -50°C to 80°C(-49°F to 158°F)
Pole Mount Diameter Range (MTAD-5G-30D3): 3 to 7cm (1.2 to 2.75in)
(MTAD-5G-30D-PA): 3 to 10cm (1.2 to 3.9in)
Connector 2x RP-SMA Female (outside thread)
Packaged size 73x73x20cm (29x29x8in)
Packaged weight (MTAD-5G-30D3): 7.5 kg (16.5 lbs),
(MTAD-5G-30D3-PA): 8.4 kg (18,5)
Compatible with Can directly mount Basebox and other future RouterBOARD devices, or accept any pole-mounted device
Package includes FlexGuide RPSMA RF Cables (RP-SMA-male to RP-SMA-male) x 2pcs; Bracket for mounting BASEBOX series radio; Self-Bonding Tape for insulating the RF cables x 2 slices; Precise alignment mechanisms (PA Version only)

Antenna Patterns:

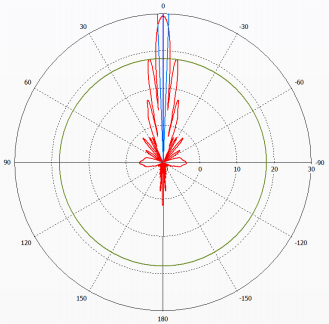

Horizontal Polarization
Horizontal Polarization

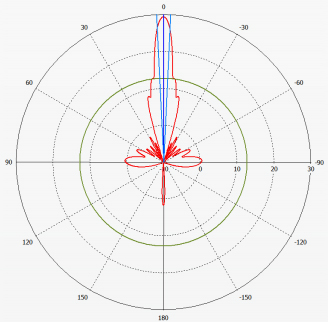

Vertical Polarization
Vertical Polarization

Documentation:

Download the MikroTik mANT30 Series Data Sheet (PDF).
