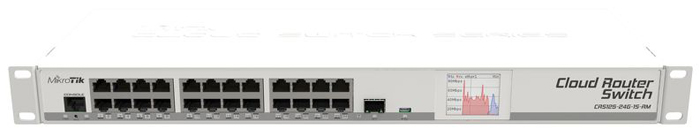

Twenty-four Gigabit Ethernet ports cloud router switch - 1U rackmount enclosure

MikroTik CRS125-24G-1S-RM

Sorry, this product is no longer available, Please contact us for a replacement.



  • 24x Gigabit Ethernet layer 3 Smart Switch
  • 1x SFP cage
  • Color touchscreen LCD
  • 600MHz CPU
  • 128MB RAM
  • 1U rackmount
  • RouterOS L5

Cloud Router Switch is our new Smart Switch series. It is a fully functional Layer 3 switch, and is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.

Choose ports for Wire speed switching, or for routing purposes.

Perfect SOHO gateway router, switch, all in one box:

  • Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
  • RouterOS gateway/firewall/VPN router with passive cooling
  • Up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)

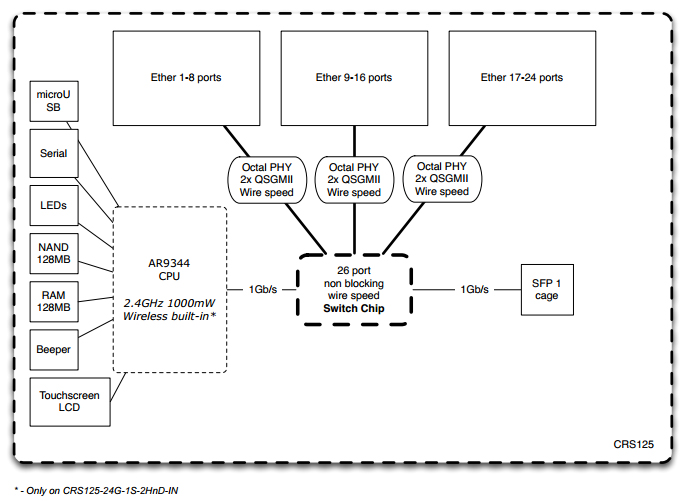

Block Diagram:

CRS125 Block Diagram


CRS125-24G-1S-RM Specifications
CPU Qualcomm Atheros AR9344 600 MHz
Memory 128MB
Ethernet 24x 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X
SFP One fixed Gigabit Ethernet SFP cage
Expansion microUSB port
Storage 128MB Onboard NAND with multiple OS partition support
Serial port One RJ45 serial port
Extras Reset switch; beeper; voltage and temperature monitoring, touchscreen LCD
Power options 8-28V, 24V 1.2A PSU included
Dimensions 443 x 142 x 44mm
Operating temperature -35C to +65C tested
Operating System MikroTik RouterOS v6, Level 5 license
  • Cloud Router Switch
  • Power adapter
  • USB OTG cable (for 4G dongle or USB drive)


Download the MikroTik CRS125-24G-1S Series Data Sheet (PDF).
