MikroTik RouterBOARD hEX PoE lite
5x Ethernet with PoE output for four ports, USB, 650MHz CPU, 64MB RAM, RouterOS L4

MikroTik hEX PoE lite

MikroTik Products
MikroTik Ethernet Routers
MikroTik RouterBOARD hEX PoE lite
#RB750UPr2
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

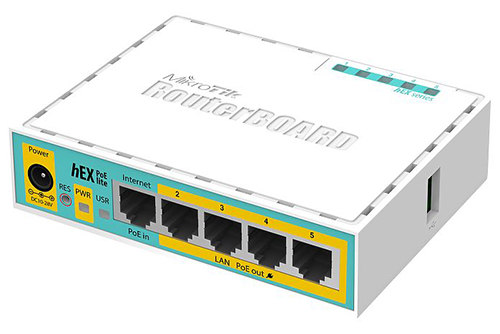

The hEX PoE lite is a small five port ethernet router in a plastic case, it has a USB 2.0 port and PoE output. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.

It is affordable, small and easy to use. With it’s compact design and clean looks, it will fit perfectly into any SOHO environment.

Specifications:


RB750UPr2 Specifications
Product code RB750UPr2
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 113x89x28mm.
Weight without packaging and cables: 129g
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
Powering
PoE in Passive PoE
PoE in input Voltage 8-30 V
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 8-30 V
Max power consumption 51 W
Max power consumption without attachments 3 W
PoE-out
PoE-out ports Ether2-Ether5
PoE out Passive PoE
Max out per port output (input < 30 V) 1 A
Max total out (A) 2 A
Ethernet
10/100 Ethernet ports 5
Peripherals
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Certification & Approvals
Certification CE/RED, EAC, ROHS
Included parts
Included parts 24V 2.5A power adapter
IEC cord

Documentation:

Download the MikroTik RouterBOARD hEX PoE lite Data Sheet (PDF).
