MikroTik Metal 52 ac
Rugged outdoor device

MikroTik Metal 52 ac

MikroTik Products
MikroTik Wireless Systems
MikroTik Metal 52 ac
2.4/5GHz software selectable AP/Backbone/CPE with AC support, high TX power, N-male connector, Omni antenna included
#RBMETALG-52SHPACN-US
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

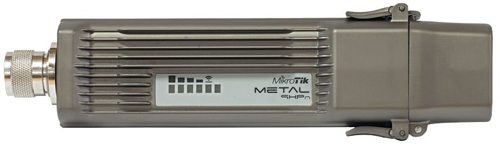

The Metal is a completely waterproof and rugged outdoor wireless device with a super high output power. Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4 GHz or 5 GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilize the full benefit of 802.11ac high speed wireless.

The Metal 52 ac supports 2.4 GHz, 5 GHz and all the legacy wireless modes as well (802.11 b/g/n for 2.4 GHz and 802.11 ac/n/a for 5 GHz).

Fully sealed, industrial design metal case, powered by RouterBOARD and RouterOS. The Metal comes with an AP software license, so you can attach your favorite antenna to use it as an AP, to make wireless point-to-point links or as a CPE - whatever you prefer!

The Metal 52 ac includes a Dual Band 2.4/5 GHz Omni directional antenna (6 dBi 2.4 GHz, 8 dBi 5 GHz), so you can use the unit right out of the box, or use your own antenna.

MikroTik Metal Box

Specifications:

Models Metal 52 ac
CPU QCA9556
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 215x60x38mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
PoE in Passive PoE
PoE in input Voltage 10-30 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 11 W
AC speed AC750
Wireless 2.4 GHz/5 GHz Max data rate 433 Mbit/s
Wireless 2.4 GHz/5 GHz number of chains 1
Wireless 2.4 GHz/5 GHz standards 802.11a/n/ac, 802.11b/g/n
Antenna gain dBi for 2.4 GHz/5 GHz 6
Wireless 2.4 GHz/5 GHz chip model QCA9889
Wireless 2.4 GHz/5 GHz generation Wi-Fi 5
10/100/1000 Ethernet ports 1
PCB temperature monitor Yes
Voltage Monitor Yes
Certification CE/RED, FCC, IC, EAC, ROHS
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 31 -93
54MBit/s 27 -78
MCS0 30 -93
MCS7 26 -74
MCS9 22 -69
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 31 -97
11MBit/s 31 -91
6MBit/s 31 -93
54MBit/s 28 -77
MCS0 31 -93
MCS7 27 -72


Included parts

24V 0.8A power adapter
24V 0.8A power adapter
Angled N connector
Angled N connector
Metal rings (two)
Metal rings (two)
6dBi omni antenna
6dBi omni antenna
(Metal 2SHPn Only)
PoE injector
PoE injector
Plastic zip tie
Plastic zip tie

Documentation:

Download the MikroTik Metal 52 ac Data Sheet (PDF).
